Desktop Computer Tactile Keyboard Switch , Gaming Keyboard Blue Switches

Brand Name : KKG

Model Number : PK150Q

Certification : CE / SGS / ISO9001

Place of Origin : Dongguan China

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T, L/C, Western Union

Delivery Time : Negotiate

Packaging Details : Export package

Name : Mechanical Keyboard Switch

Brand : KKG

Total Travel : 4.0±0.5mm

Breaking travel : 1 .5mm±0.6mm

Conduction travel : 2.00mm±0.6mm

Tactile Force : 50110gf

Operating Force : 60±10gf

Insulation Resistance : 100MΩ Min(DC100V)

Contact Resistance : 200mΩ max

Stem Color : Blue

Feature : There is a sense of disconnection and sound

Usage : Desktop Computer

Contact Now

Desktop Computer 4mm Red Mechanical Blue Keyboard Electronic Tactile Switches
Features

1. Polycarbonate & Polymer Nylon housing.

The top housing is Polycarbonate, the lower housing is Nylon PA.

We know exactly the materials are very important for the switch performances, sound and feelings.
Polycarbonate is with higher intensity and more transparency features to act as top housing. Nylon is wear-resistant which is more suitable for switch lower housing.
2. OEM Special Design Stem with POM material, which close to original Holy panda but still with its own unique tactile feelings.

3. Gold planting 67gf Spring wich is just the same force as original Hola Panda / Invyr Panda
4. Style: Tactile
5. Tactile method: Metal leaf

6. LED styles: SMD and through-hole
7. Gold-plated cross-point


Specification:

1. Rating: 12V AC/DC max.2V DC min
10mA AC/DC max.10uA DC min
2. Contact Resistance: 200mΩ max
3. Insulation Resistance: 100MΩ Min(DC100V)
4. Withstand Voltage: AC500V(50-60Hz)for 1minute
5. Bounce Time: ≤ 5msec(at 16in/sec. actuation speed)
6. Operating Force: 60±10gf
7. Tactile Force: 50110gf
8. Conduction travel: 2.00mm±0.6mm
9. Breaking travel: 1 .5mm±0.6mm
10.Total Travel: 4.0±0.5mm

Electrical Characteristics Rating 12VDC/AC max. 10mA AC/DC max
Contact Resitance 200M max (25M typical )(initial value)
Insulation Resistance 100M Min
Voltage Resistence AC 100V (50-60Hz) 1Minute
Eletrical life Over 50,000,000 cycles (Load)
Bounce Time 400mm/s 5msec (operation speed at 400mm/spec)
Mechanical Reliability Operating Force See Detail Spec
Pre-travel 2.0+/-0.6mm
Total Trave 4.0+/-0.4
Mechanical Life Over 50,000,000 cycles (No Load)
Operating Temperature Range (-40℃~ + 80℃)
Ambient Humidity </= 85% RH max
Solder ability 260℃+/-5℃ 3S+/-0.5S
Soldering Heat Resistance 260+/-5℃ 3S+/-1S
Soldering by hand Use a 30 watts soldering iron for about 3S at 350while soldering
Trade Terms 1.The price is based on FOB Shenzhen or Hongkong or EXW factory
2.MOQ:5000pcs
Payment:T/T payment,50% deposit before production, balance 50% before shipment
Certificates ISO9001&TS16949
ENEC UL CUL &CQC
RoHS & Reach

Desktop Computer Tactile Keyboard Switch , Gaming Keyboard Blue Switches


Product Tags:

Desktop Computer Tactile Keyboard Switch



Polycarbonate Gaming Keyboard Blue Switches



Metal leaf Tactile Keyboard Switch


Desktop Computer Tactile Keyboard Switch , Gaming Keyboard Blue Switches Manufactures

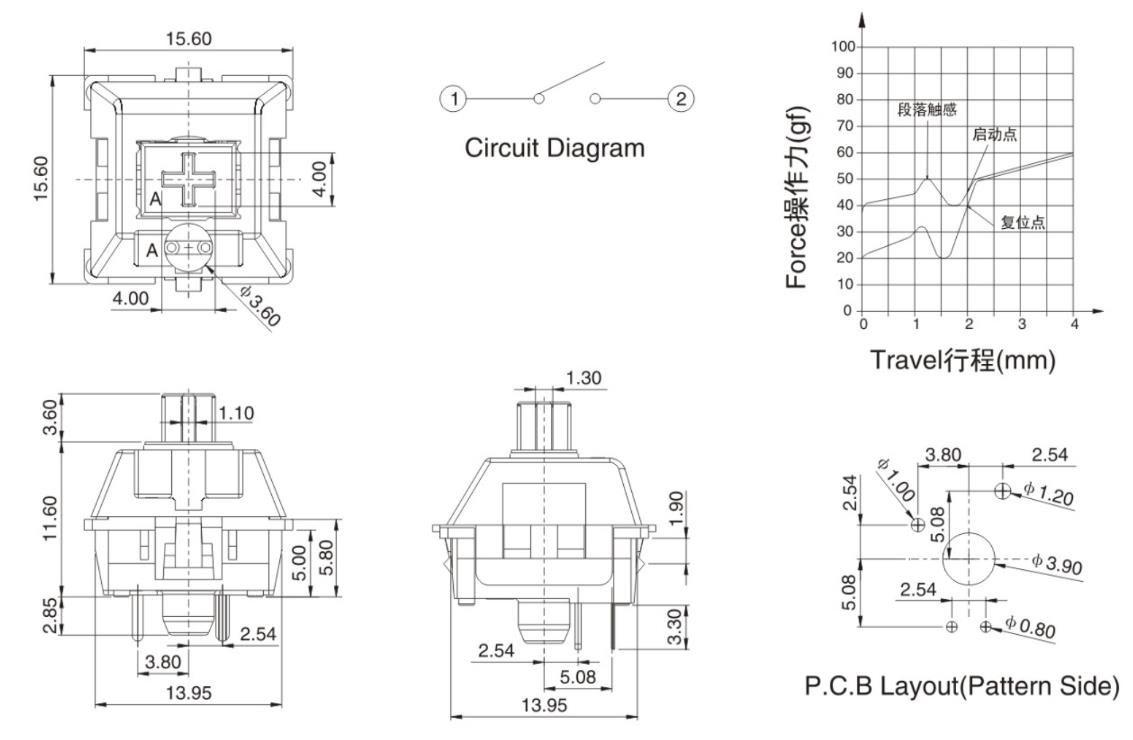

Desktop Computer Tactile Keyboard Switch , Gaming Keyboard Blue Switches Images
