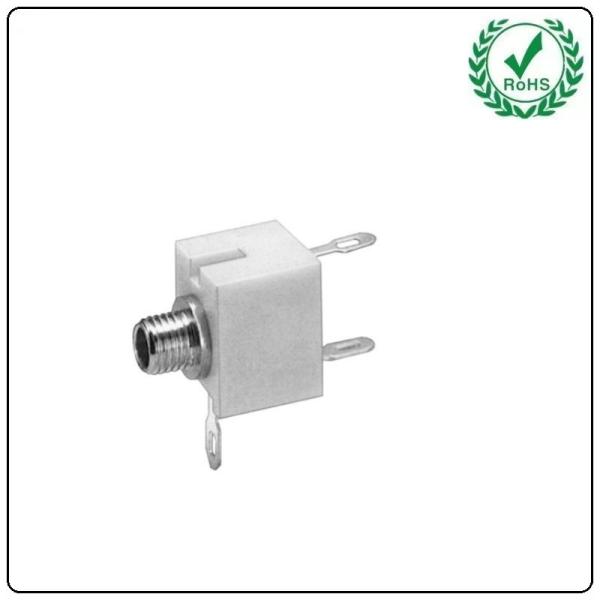

2.5mm Earphone Jack PJ20170
Many people in the process of using will know some of his working principle and some related basic
information. So many people in the use of headphone plugs,some of his characteristics or the use of
the process of precautions have a lot of understanding.
Phone Jack's Features:
1) With 5.1 channel and audio high fidelity different structural design. 5.1 track and hi-fi audio frequency.
2) With a variety of functional options. Muti-function choice.
3) DIP and SMT are available for installation. Assemble ways:DIP and SMT.4) Contact terminal adopts
elastic structure design to ensure good and stable contact and service life. Contact terminal use flexibility
structure design,ensure good ,steady contact and using life.
5) Can design different functional connection products according to customer requirements. Can desing
different connext products
Phone Jack's Specification:
| Rating | DC 50V 0.5A |
| Contact resistance | 50mΩMax |
| Insulation Resistance | 100MΩMin |
| Withstand Voltage | AC 250V 1Min |
| Soldering Temper | 260±5°C5s |
| Mechanical Life | 5,000 times |
| Electrical Life | 5,000 times |
| Ambient Temper Used | -25°C to 85°C |
| Ambient Humidity Used | 85%RH |
| Operating Force | 3-30N |
Phone Jack Mainly used in mobile phone stereo design, CD player, wireless phone, MP3 player,
digital laptop, DVD, digital camera.
KKG electric CO.,LTD. is a company devotes itself to researching and manufacturing the components
such as switches, sockets and connectors. The Production of Products mainly used in computer products,
consumer electronics, electrical & electronics, industrial equipment & components......
So far,KKG set up own factory ,Processing factory,OEM factory and sales company in mainland China,
Taiwan(China) and Hong Kong .
During this time, the company had won many awards. Just like the industry first prize for the ISO9001
and the quality management.
1. OEM Manufacturing welcome: Our production capacity can be customized for any product.
2. Sample order can be accepted.
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products.
5. When you got the goods, test them, and give me a feedback.If you have any questions about the
problem, contact with us, we will offer the solve way for you
Q1: Do you take small orders?
A: Yes, we assure you of our best services at all times. Feel free to contact us.
Q2: What's the lead time of mass production?
A: Generally 2-4 weeks. We will inform you the lead time after receiving your payment.
Q3: I can't find specific products, can you make it for me?
A: Yes, our catalog covers the majority of our products but not all. So feel free to let us know what you want.
We can also open new mould for specific requirements. For your reference, making a new mould will take
about 40 days, and additional fees are needed.
